The digital panel meter shows the reading of the input signal in digital form . These signal inputs such as voltage, current, or resistance are often measured from a sensor that is converted and displayed as temperature, pressure, and so on.
https://youtu.be/zXKIeLaJyzk
Specification:
Range: DC 8.0-30V (No need for additional power)
Reverse Connect Protection
Display: Three 0.56'' LED digital tube
Display color : red
Refresh rate: about 500mS / times
Input: DC voltage (<2 times the range)
Resolution: 1% +1 digit
Power Supply: DC3.0-30V (with the input common-line)
Operating temperature: -10°c~ 65°c
Package includes:

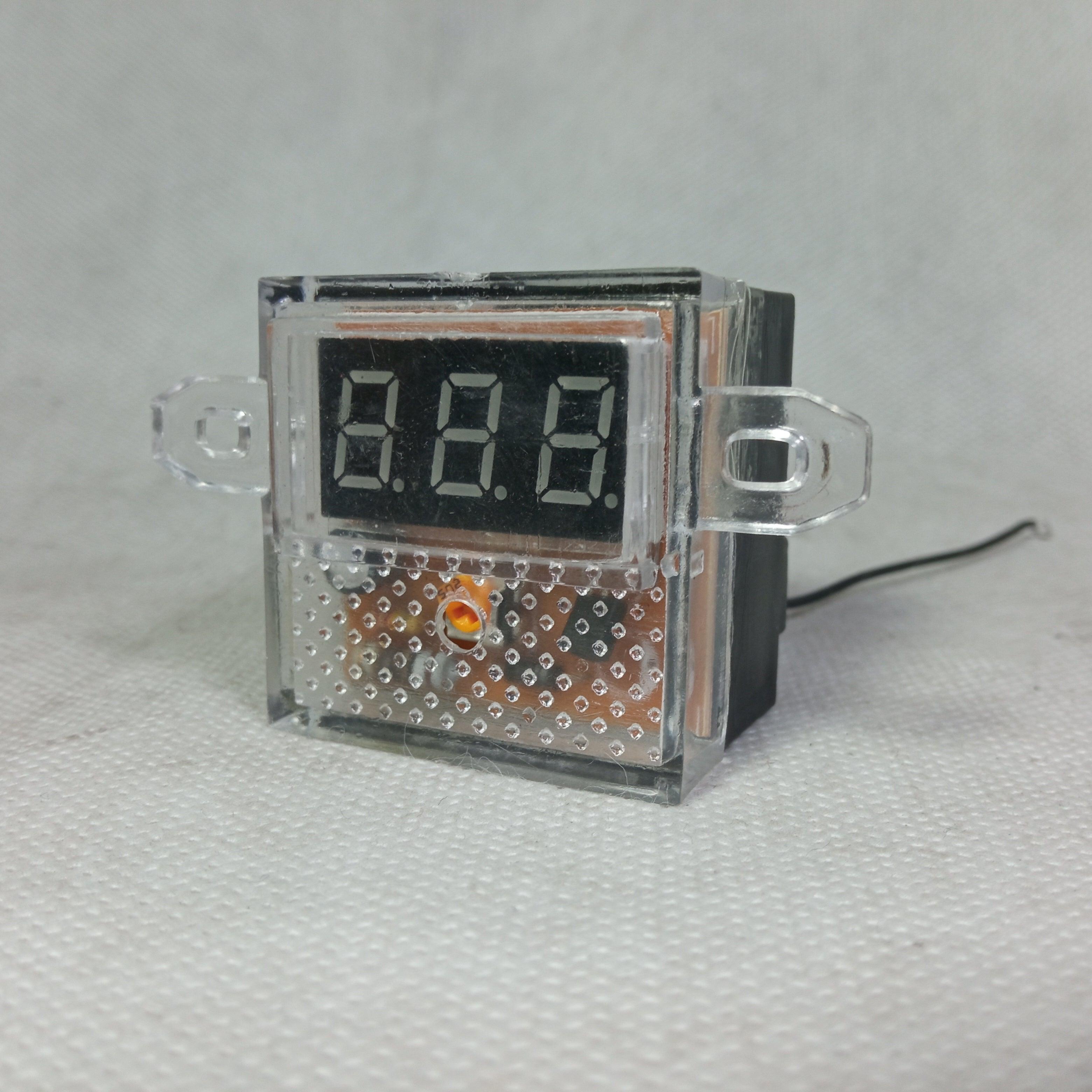

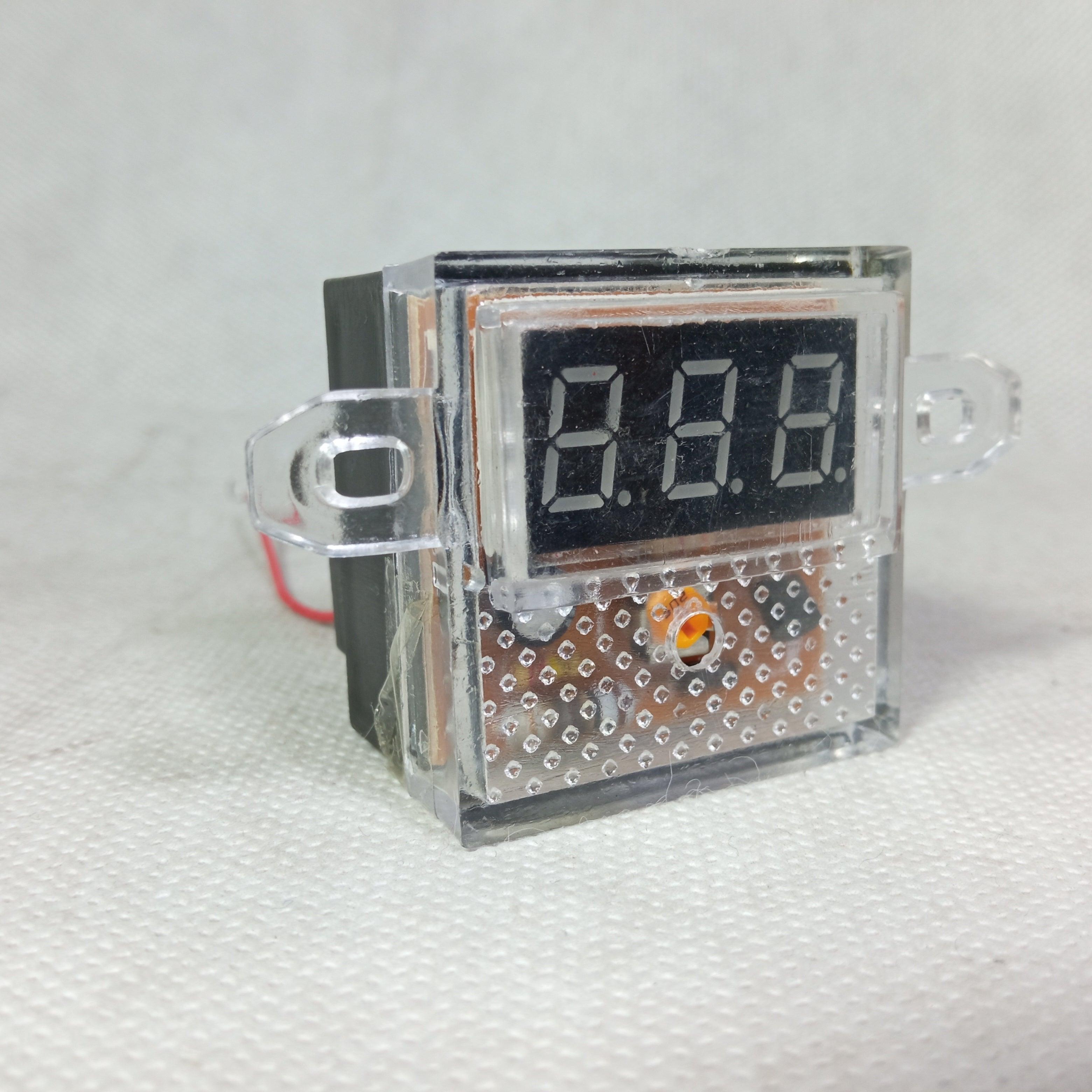

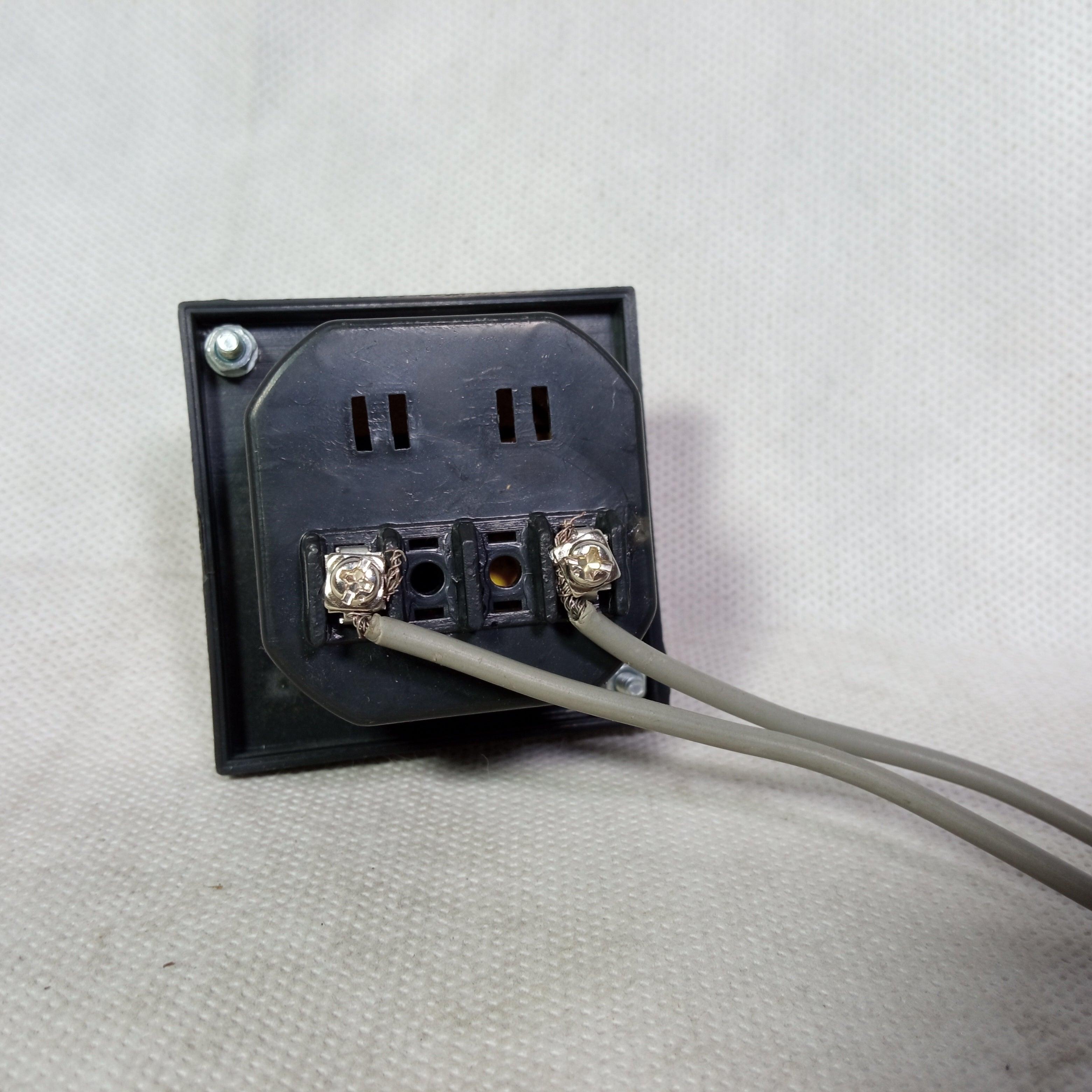

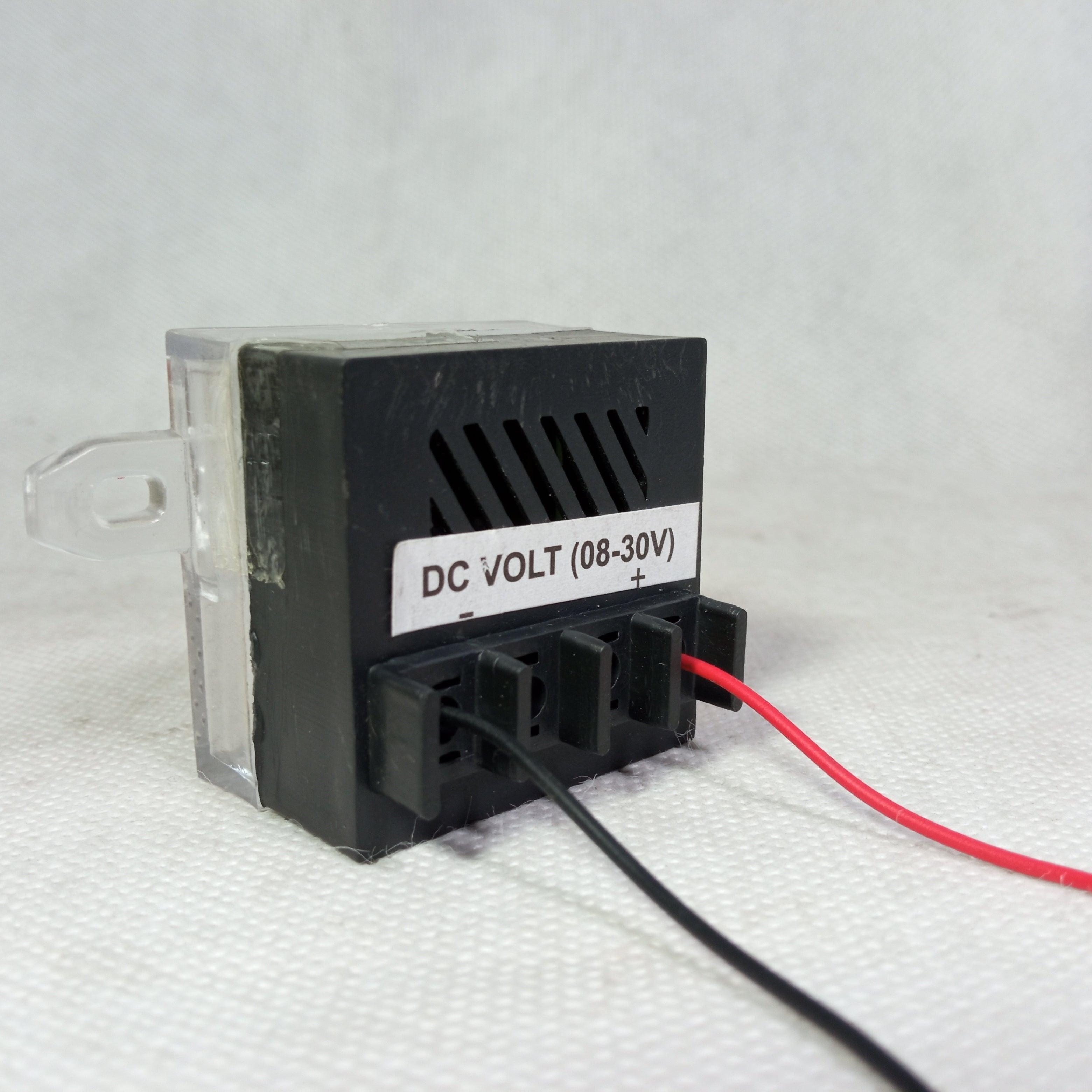

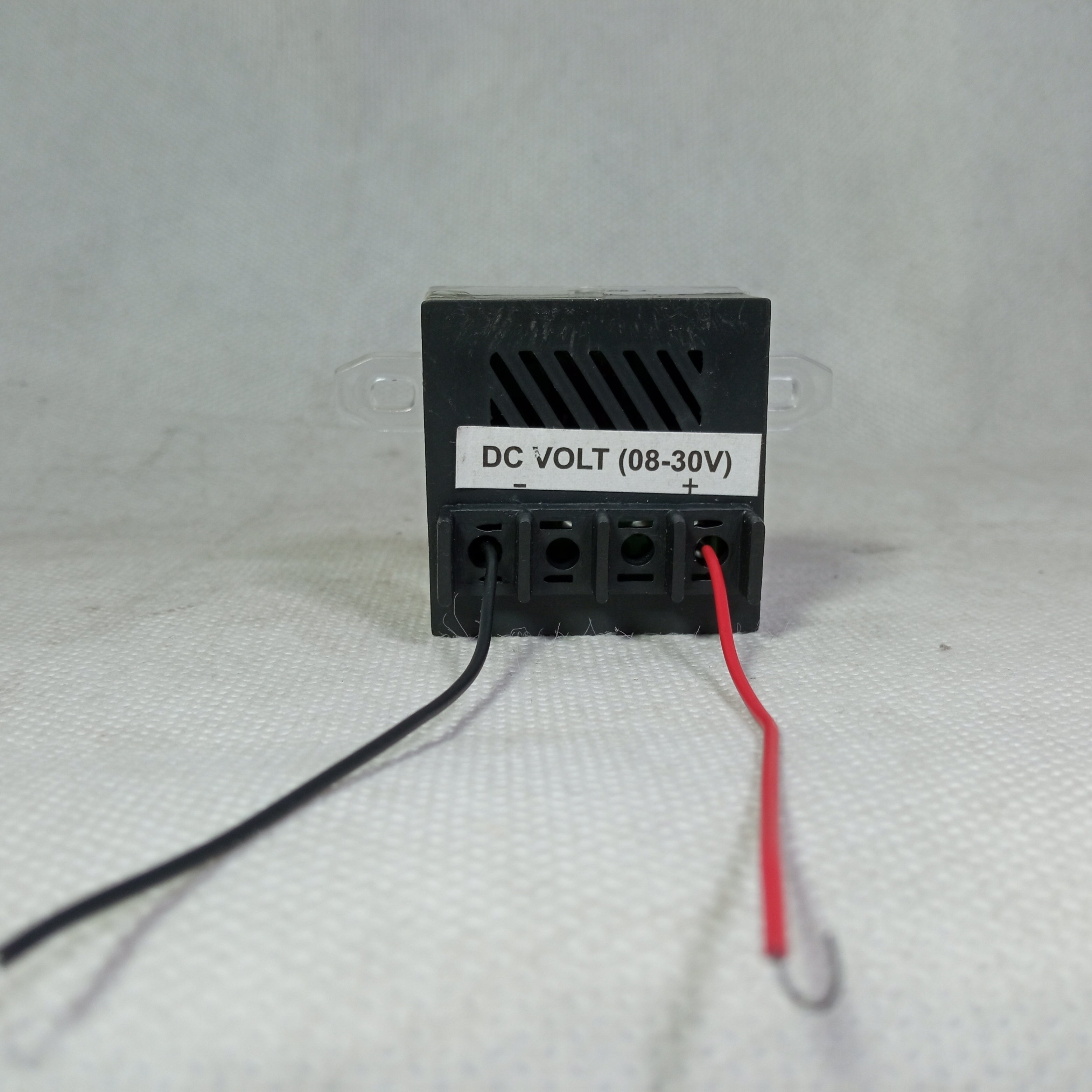

1 x DC Volt Meter Range 8 to 30V Led Digital Voltage Panel Meter
