CHINT AX-3X Series Auxiliary Contact Blocks in Pakistann - AX3C-11

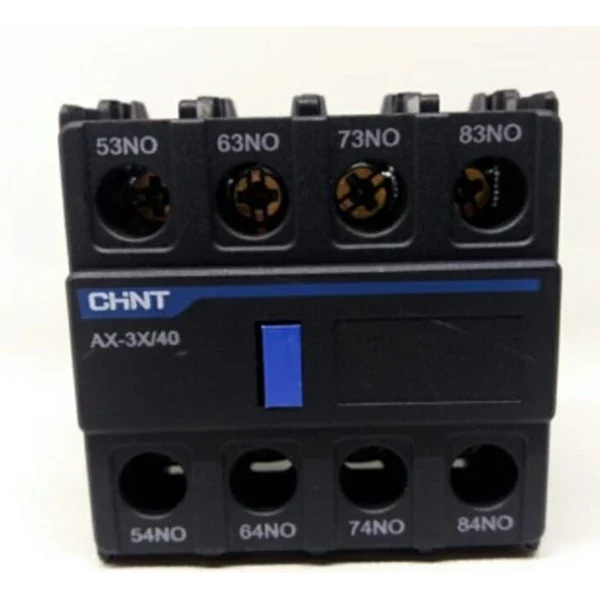

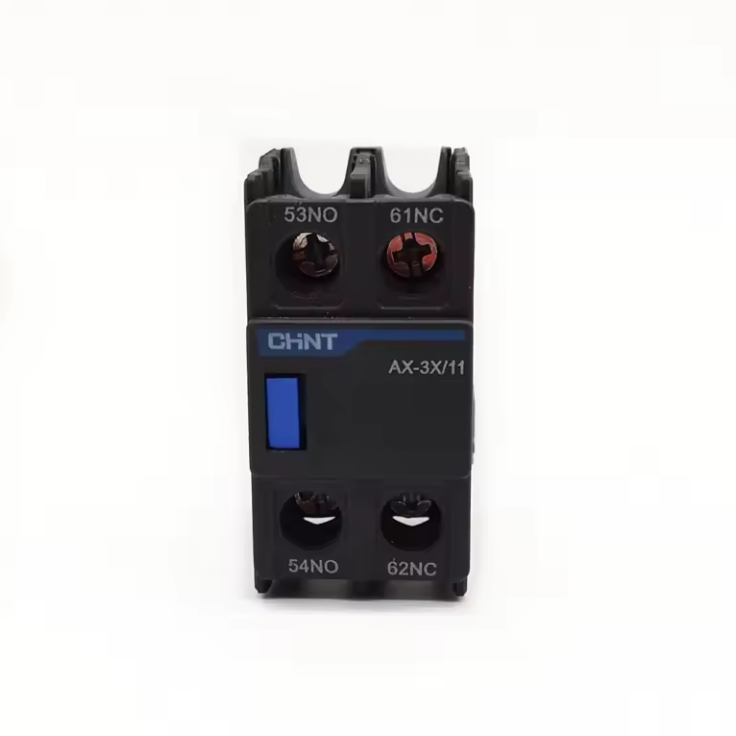

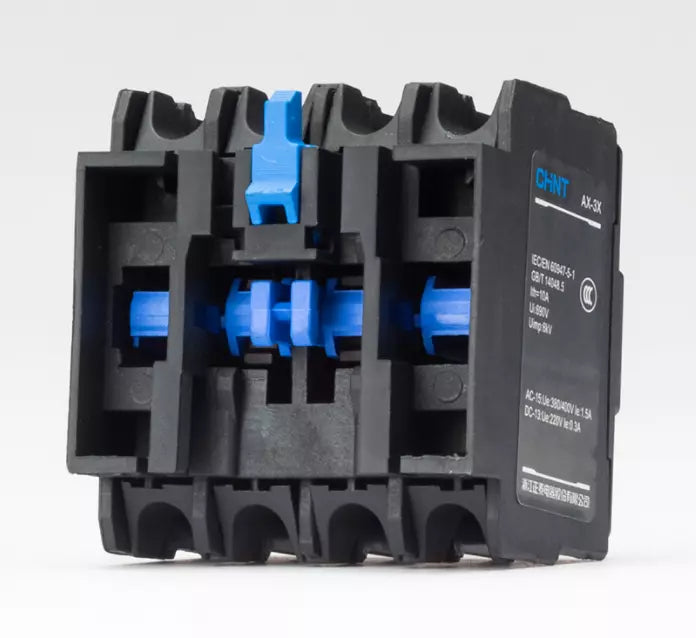

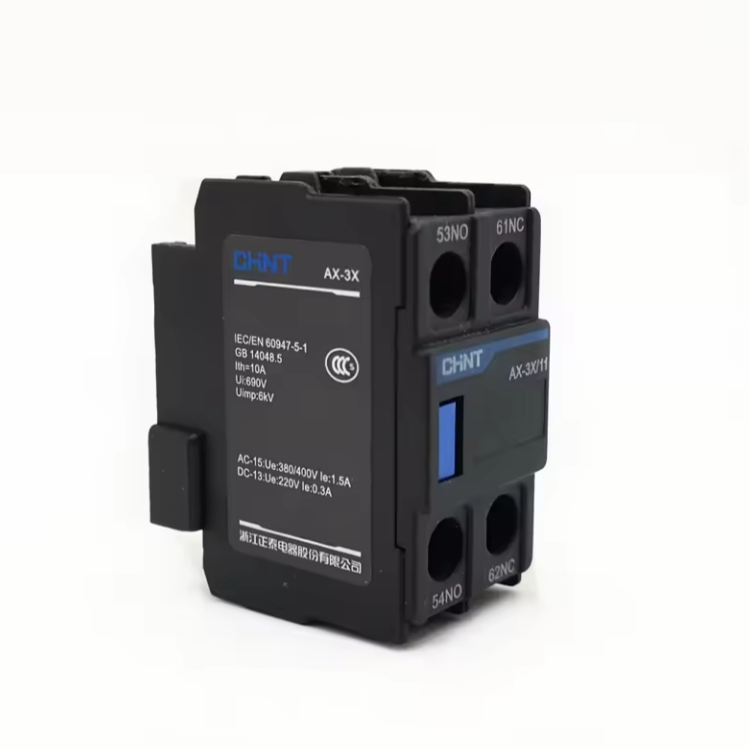

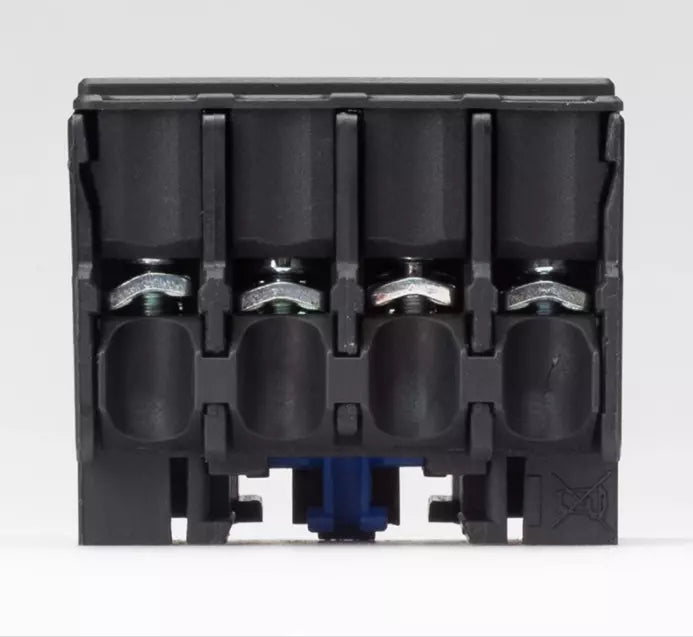

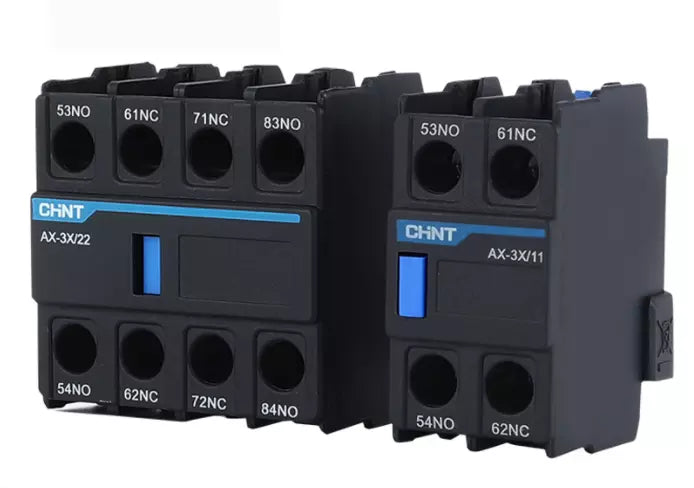

CHINT AX-3X Series Auxiliary Contact Blocks are devices that attach to the top of contactors to provide extra electrical contacts. These additional contacts are used for things like signaling when the contactor is on or off, interlocking it with other devices, or sending signals to control systems. By adding these auxiliary contacts, the contractor can do more than just switch power, and it allows for more complex and sophisticated electrical control circuits. Features of CHINT AX-3X Series Auxiliary Contact Blocks: Top mounting: The AX-3X auxiliary contact blocks are designed to be mounted on the top of compatible contactors. This mounting configuration provides a convenient and space-saving solution for adding extra contacts to the contactor assembly. Auxiliary contacts for contactors: These contact blocks provide additional contacts that work in conjunction with the main contacts of a contactor. Auxiliary contacts are used for signaling, interlocking, or control purposes, separate from the main power switching function of the contactor. Specifications of CHINT AX-3X Series Auxiliary Contact Blocks: MODEL: AX-3X/11, AX-3X/20, AX-3X/02, AX-3X/22, AX-3X/13, AX3C-11 Mounting: Top Aux Contact, Side Aux Contact Contact Arrangement: 1NO+1NC, 2NO, 2NC, 2NO+2NC, 1NO+3NC This specifies the number and type of contacts included in the auxiliary contact block: NO: Normally Open contact NC: Normally closed contact Uses: Provide additional contacts to contactors: The primary purpose of these auxiliary contact blocks is to increase the number of available contacts on a contactor. This allows for more complex control schemes and greater flexibility in circuit design. Benefits: Expands contractor functionality: By adding auxiliary contacts, the contractor can perform additional functions beyond simply switching power circuits. This can include signaling the state of the contractor (on or off), interlocking with other devices, or providing input to control systems. Enables more complex control circuits: With more contacts available, it becomes possible to create more sophisticated control circuits. This can include logic functions, sequencing operations, and more advanced automation schemes. Package includes: 1x CHINT AX-3X Series Auxiliary Contact Blocks
