Baomain Metal QL100A 100A Amp Diode Bridge Rectifier in Pakistan

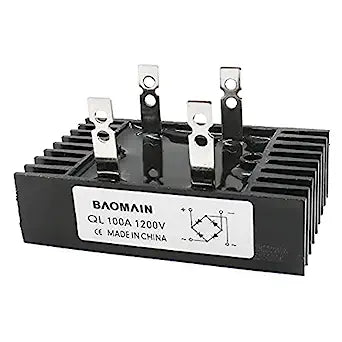

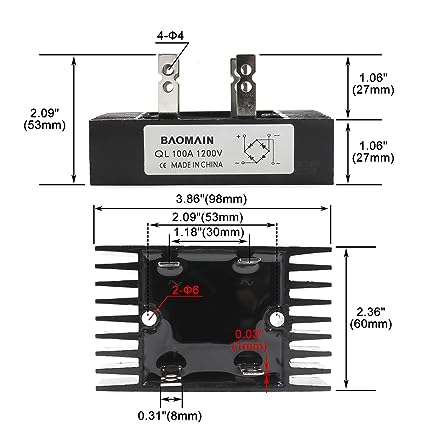

The Baomain 100A Amp 1200V Volt Diode Bridge Rectifier Metal QL100A is a bridge rectifier that is used to convert alternating current (AC) into direct current (DC). It is a metal package with four diodes that are arranged in a bridge configuration. The bridge rectifier can handle up to 100A of current and 1200V of voltage. Features of Baomain Metal QL100A Diode Bridge Rectifier: Metal package Four diodes Bridge configuration 100A current rating 1200V voltage rating Heatsink design Specifications of Baomain Metal QL100A Diode Bridge Rectifier: Output current: 100A Repetitive peak reverse voltage: 1200V Fixing holes diameter: 7mm Fixing holes spacing: 45mm Main body size: 98 x 60 x 27mm / 3.85" x 2.36" x 1.06" (L W T) Overall height: 53mm / 2.08" Net weight: 440g Dimensions: Width: 98mm Height: 60mm Depth: 27mm Uses: The Baomain 100A Amp 1200V Volt Diode Bridge Rectifier Metal QL100A can be used in a variety of applications, including: Power supplies Inverters Welding machines Battery chargers LED drivers Package includes 1 x Baomain 100A Amp 1200V Volt Diode Bridge Rectifier Metal QL100A 1 x Instruction manual
