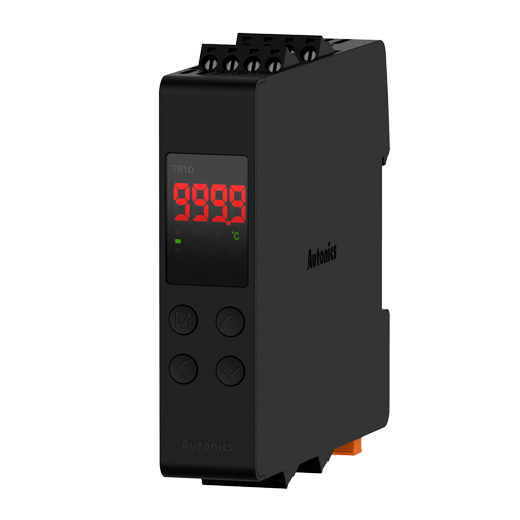

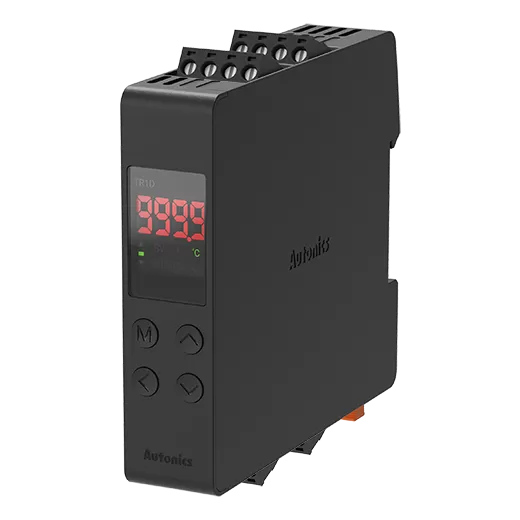

Autonics TR1D -T4CC Digital Temperature Controller (Used) in Pakistan

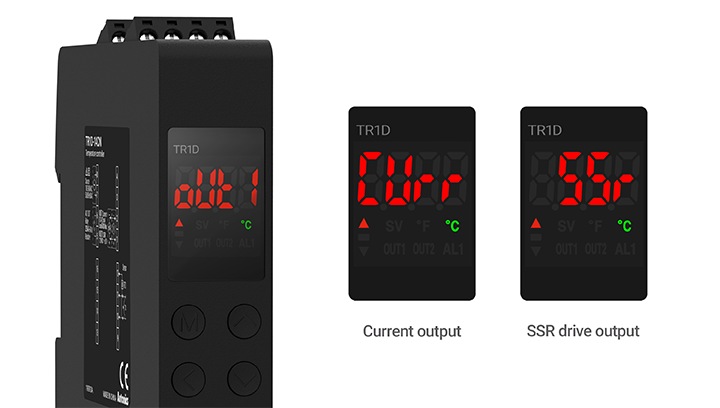

The Autonics TR1D- T4CC Digital Temperature Controller is a reliable device used to measure and control temperature in industrial systems. It operates with a power supply of 100– 240VAC at 50/ 60Hz , making it suitable for many industrial environments. Moreover, it offers stable performance with low power consumption and accurate control outputs. The controller supports SSR drive output and current output options , which provide flexible control for heating or cooling equipment. In addition, it can transmit signals using a 4– 20 mA output , allowing easy integration with automation systems and monitoring equipment. Features Wide 100– 240VAC power supply range for flexible industrial installation. Stable temperature control performance for reliable process operation. Supports SSR drive output up to 12VDC ± 3V, 20mA for heater control. Selectable current output ( 0– 20mA or 4– 20mA) for different control systems. Low power consumption ( max. 8VA) improves energy efficiency. Optional 4– 20mA transmission output for remote monitoring. Designed for easy integration with industrial automation equipment . Durable design suitable for continuous industrial operation . Specification Power voltage 100-240VAC~ 50/60Hz Allowable voltage range 90 to 110% of rated voltage Power consumption Max. 8VA Sampling cycle 50, 100, 250ms Input type_RTD DPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω) Input type_TC K(CA), J(IC), L(IC), T(CC), R(PR), S(PR) Input type_CT 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000 Display accuracy RTD/Thermocouple: ㆍ At room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digit ㆍ Out of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit Display accuracy_CT input ±5% F.S. ±1-digit Control output_SSR Max. 12VDC ±3V 20mA Control output_Current Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω) Option output_Trans. DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.) Display method 7-segment (red) 4-digit Control method ON/OFF, P, PI, PD, PID Control output_Hysteresis Control output: 1 to 100℃/℉ (0.1 to 100.0℃/℉) Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉) Proportional band 0.1 to 999.9℃ Integral time 0 to 9999 sec Derivative time 0 to 9999 sec Control period Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec Dielectric strength Between the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min Vibration 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours Relay life cycle_Mechanical OUT1/2, AL1/2: min. 5,000,000 operations Relay life cycle_Electrical OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A) Insulation resistance ≥ 100 MΩ (500 VDC megger) Insulation type Double insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV) Noise immunity ±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase Memory Protection ≈ 10 years (non-volatile semiconductor memory type) Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 194.5g (approx. 123.5g) Uses Used for temperature control in industrial heating systems . Commonly applied in ovens, furnaces, and heaters . Suitable for automation and manufacturing process control . Used in laboratories and testing equipment for temperature monitoring. Installed in machines requiring accurate temperature regulation . Package includes: 1x  Autonics TR1D -T4CC Digital Temperature Controller (Used)
