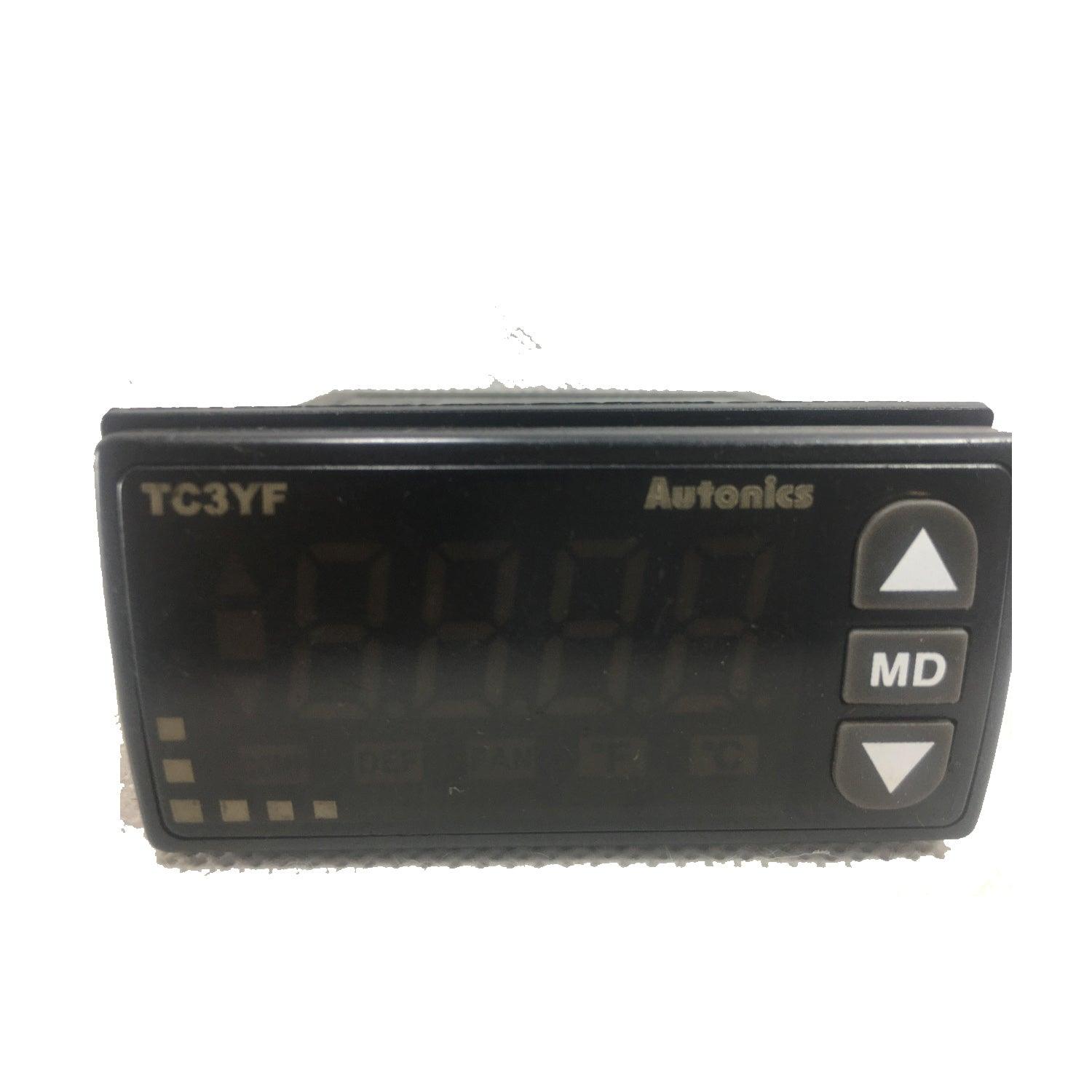

AUTONICS TC3YF Series Temperature Controller in Pakistan

Refrigeration temperature controller TC3YF series is high reliability temperature controller to protect the object inside the chillers via compressor output so that compressor operation cycle and ON ratio can be set even if errors occurs. This series also prevents loss of frozen efficiency with defrost function to remove frozen ice or frost in the freezer, and increases the efficiency of frozen through various delay time setting. FEATURES: ON/OFF Control Input specification - Basic specification: NTC (Thermistor), Option: RTD (DPt100Ω) Temperature display range NTC sensor type: -40.0 to 99.9℃ (-40 to 212℉) RTD sensor type: -99.9 to 99.9℃ (-148 to 212℉) Supports various delay functions for utilize freezing Auto/Manual Defrost selection function, Start-up delay of compressor, Re-operation delay, Minimum ON time, Delay of defrost-end, Operation delay of evaporation-fan Input correction function Enable to set operation period for protecting compressor in error. Specification: Display method : 3-digit 7-segment LED Control method : Cooling Input specification : Thermistor(NTC)※2: 5kΩ Sampling cycle : 500ms Input range : -40.0~99.9℃ -40.0~212℉ Power supply : 100-240VAC~ 50/60Hz Protection structure : IP65(front panel) Package includes: 1 x AUTONICS TC3YF Series Temperature Controller Facebook Instagram Pinterest
