Capacitive proximity sensors (CPS) are sensing devices designed to detect both metallic and nonmetallic targets . They can detect lightweight or small objects that cannot be detected by mechanical limit switches.
https://youtube.com/shorts/9WT5GNOCiN4?
Specifications:
Wire type and power AC 2-wire type
100-240VAC~
Sensing side diameter M18
Sensing distance 8mm
Standard sensing target 50×50×1mm(iron)
Response frequency 20Hz
Current specification Leakage current: Max. 2.2mA
Control output Normally Open
Material Polyamide 6
Protection structure IP66
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80?
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 20% of the sensing distance
Weight Approx. 82g(approx. 70g)
Package Includes:

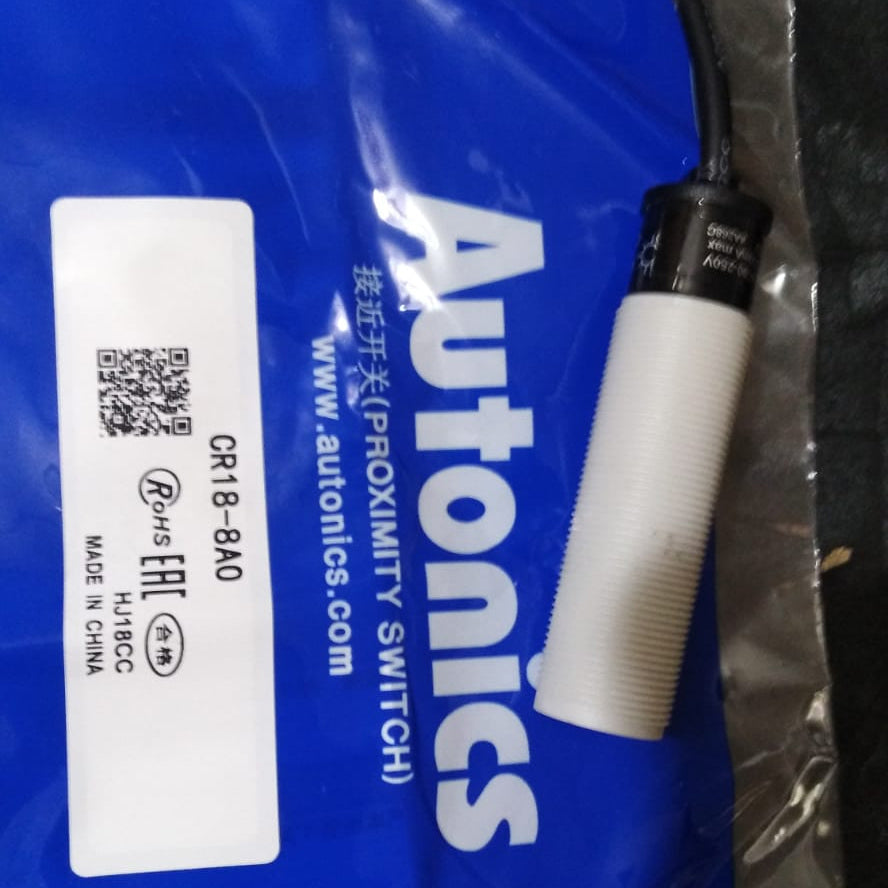

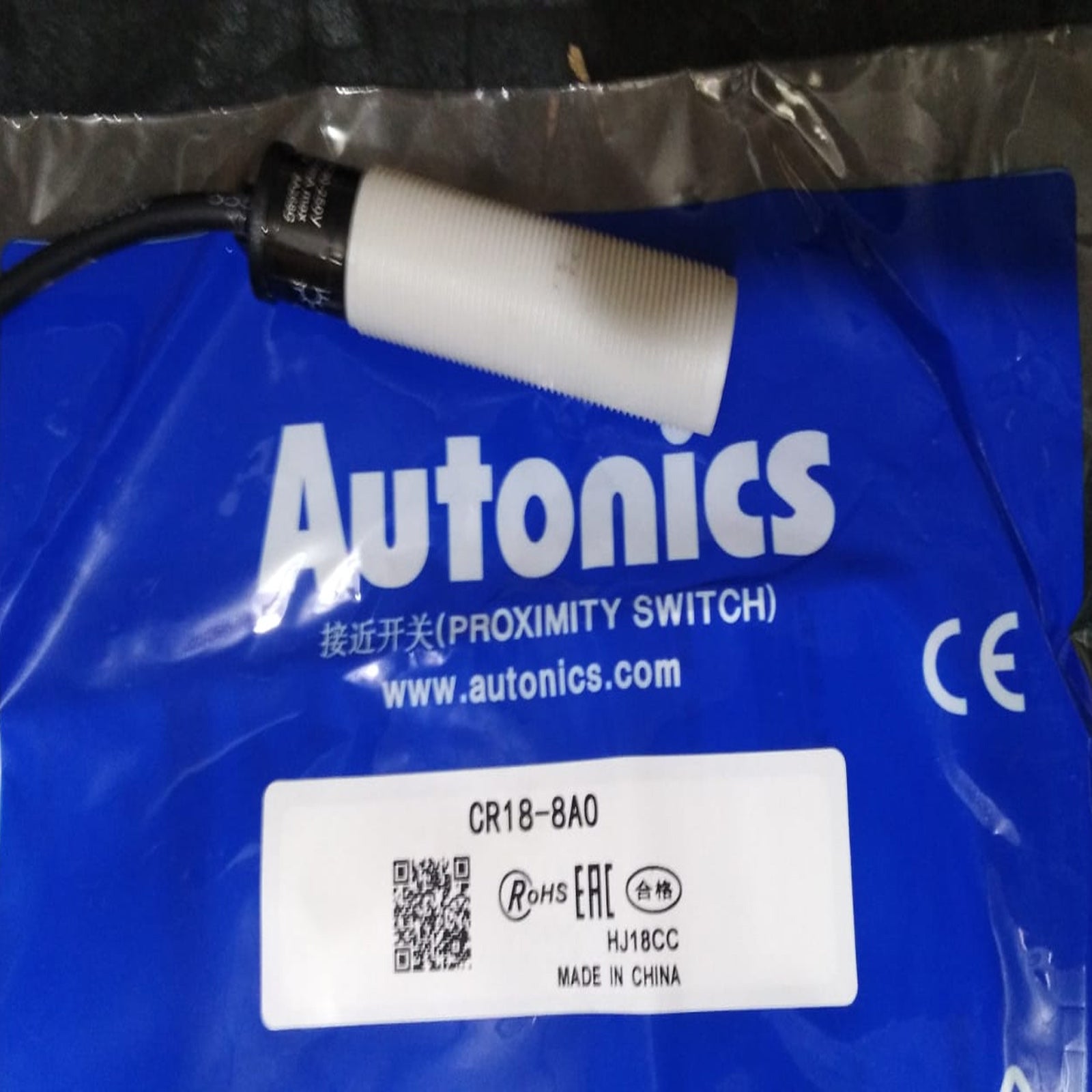

1 x Autonics CR18-8AO Capacitive Proximity Sensor
