AOYI ST8-5DD 8-Channel 24V DC Solid State Relay, 5A x 8 in Pakistan

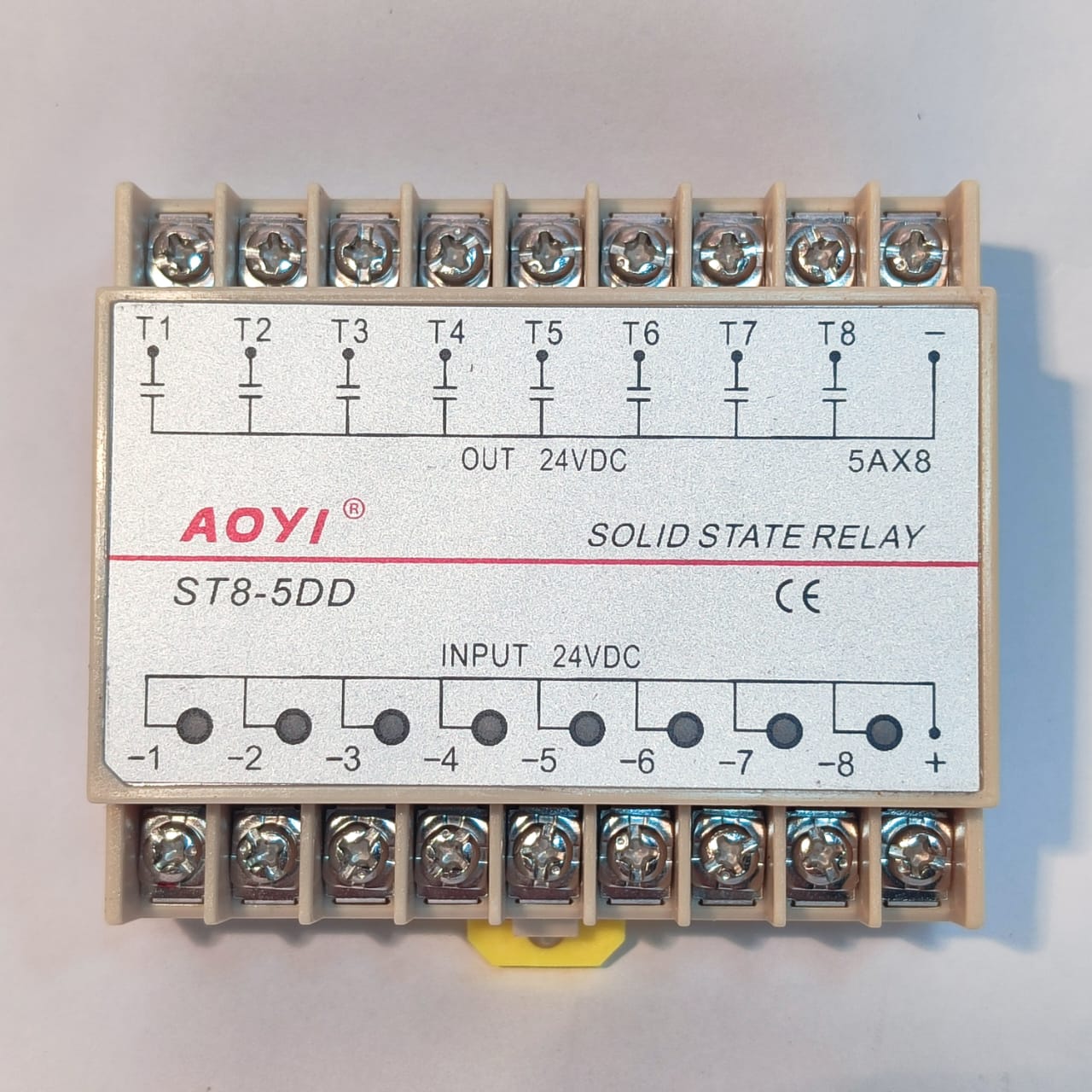

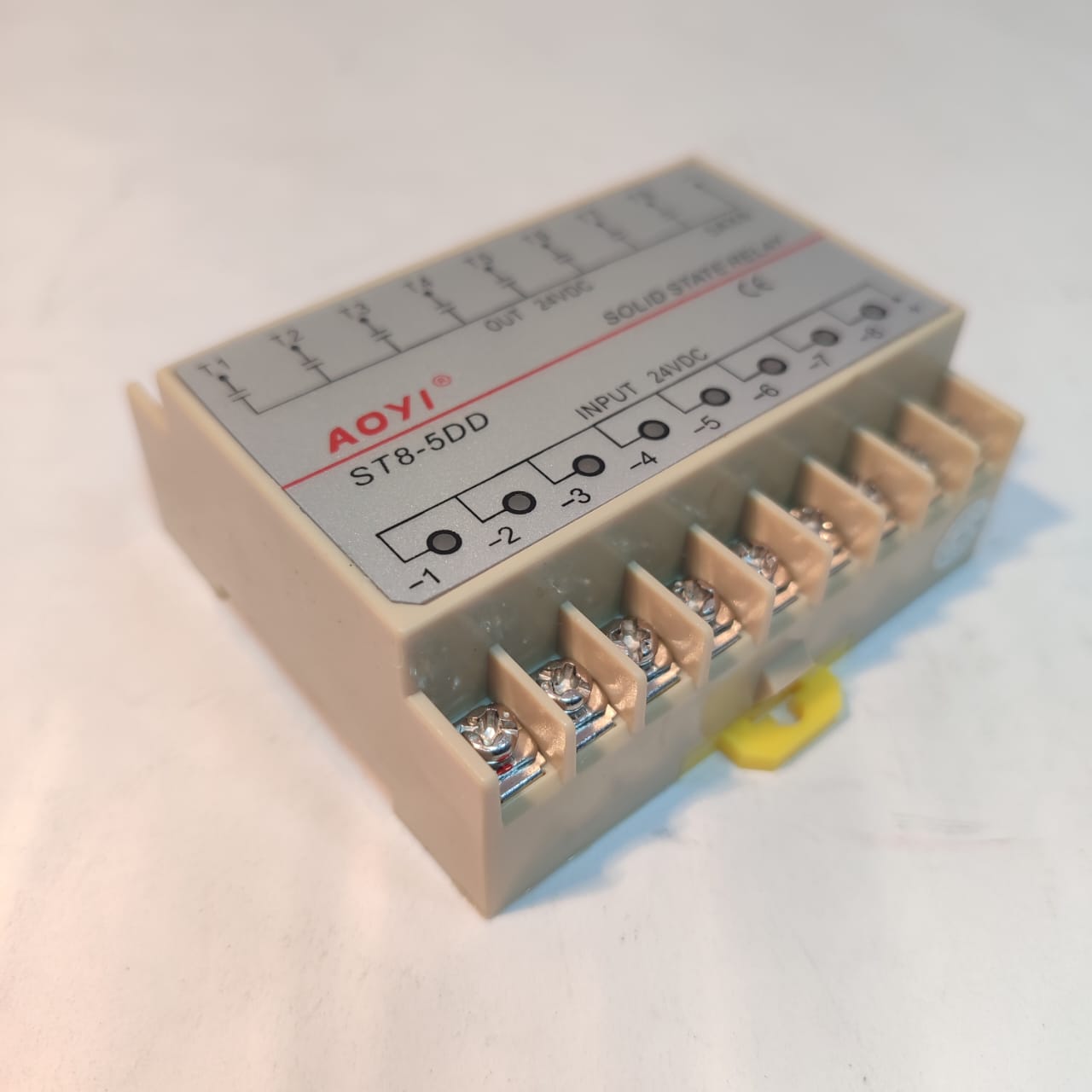

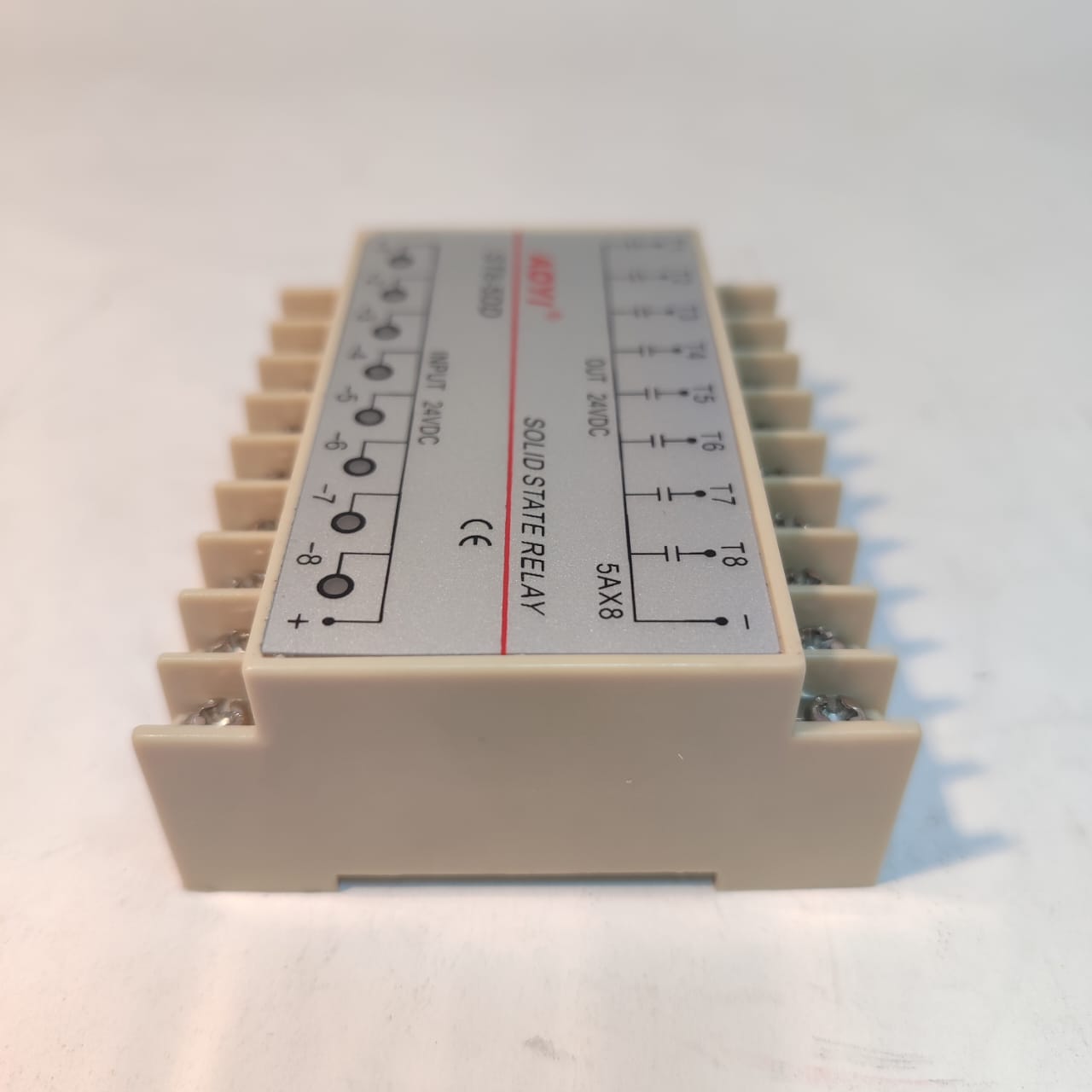

AOYI ST8‑5DD 8‑Channel 24VDC Solid State Relay AOYI ST8‑5DD is an eight‑channel DC solid state relay module for switching 24V DC loads. Each channel is rated 5A, giving clean, silent, bounce‑free operation versus mechanical relays. It’s ideal for PLC expansion, machine panels, packaging lines, vending, and LED signage where fast and reliable DC switching matters. Inputs are 24V DC and clearly marked “INPUT 24VDC.” A common positive bus is provided with individual channel triggers (‑1…‑8). Outputs are labeled T1…T8 as “OUT 24VDC 5A×8,” making wiring simple and service friendly. Features of AOYI ST8‑5DD 8‑Channel 24VDC Solid State Relay: 8 solid‑state DC outputs, 5A per channel 24V DC inputs with common bus and per‑channel triggers Silent, arc‑free, long‑life switching Clearly labeled T1–T8 outputs, screw terminals Compact panel module for tidy wiring Specifications: Model: AOYI ST8‑5DD Control Input: 24V DC Outputs: 8× 24V DC channels, 5A each (resistive) Terminals: Screw type, top outputs / bottom inputs Mounting: Panel/enclosure; ventilation recommended Uses: PLC and controller output expansion Solenoids, valves, and DC contactor coils DC lamps, LED signage, beacons Small DC motors, pumps, conveyors Vending, packaging, labeling machines
