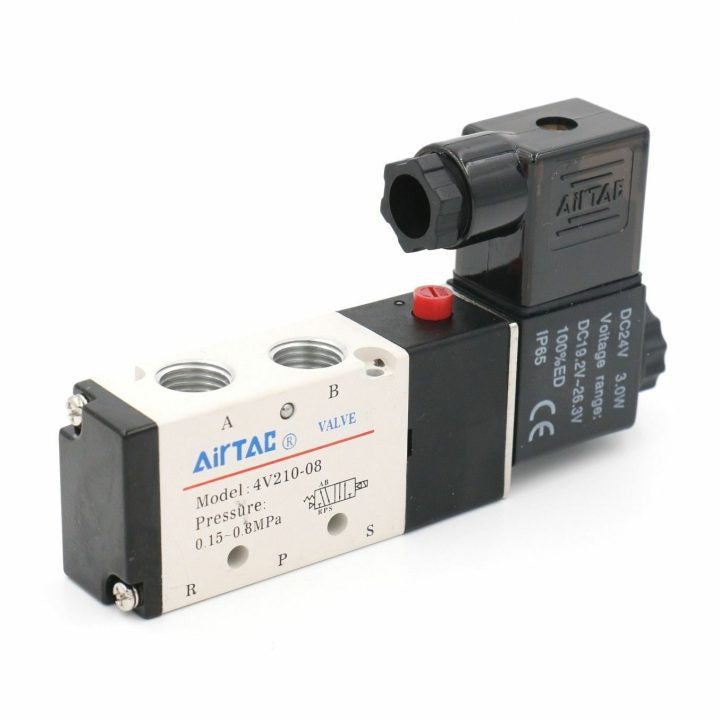

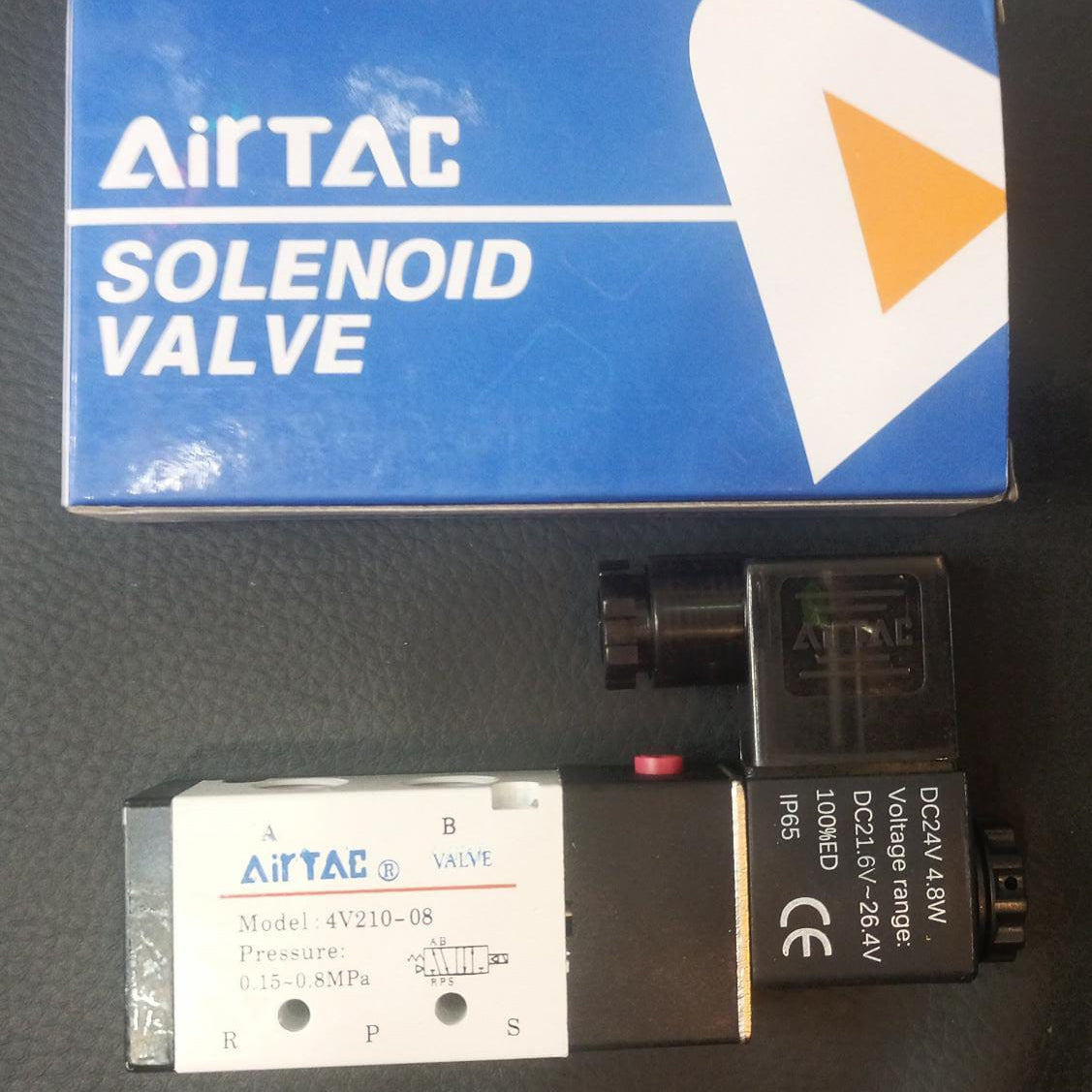

Airtac Solenoid Valve 5way 1/4″ (4v210-08) 3position in Pakistan

Solenoid valves are control units that, when electrically energized or de-energized, either shut off or allow fluid flow . The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring. Features: Pilot-oriented mode: optional for internal or external. Structure in sliding column mode: good tightness and sensitive reaction. Three-position solenoid valves have three kinds of central functions for your choice. Double control solenoid valves have memory function. Internal hole adopts unique processing technology with little attrition friction, low start pressure, and long service life. No need to add oil for lubrication. It is available to form an integrated valve group with the base to save installation space. Connected manual devices are equipped to facilitate installation and debugging. Several standard voltage grades are optional. Specifications: Product Name: Solenoid Valve Model: 4V210-08 Working Pressure: 0.15~0.8Mpa Max. Pressure Resistance: 1.2Mpa Operating Temperature: -5~50 degrees Current: 250mA Insulation&Protection Class: F. IP65 Highest Action Frequency: 4 Excitation Time: 0.05 Second Position & Way Number: Two-position, Five-way Effective Sectional Area: 16mm2 (CV=0.89) Joint Pipe Bore: Inlet=Outlet=1/4””, Exhaust=1/8″ Total Size: 11.8 x 6.6 x 2.1cm/4.6”” x 2.6”” x 0.8″(L*W*H) External Material: Metal, Plastic Color: White, Black Net Weight: 215g Uses: Controls pneumatic cylinders and actuators Used in automation and factory machines Applied in packaging and assembly lines Operates in industrial pneumatic systems Enhances efficiency and accuracy of machines Package Includes: 1 x Airtac Solenoid Valve 5way
