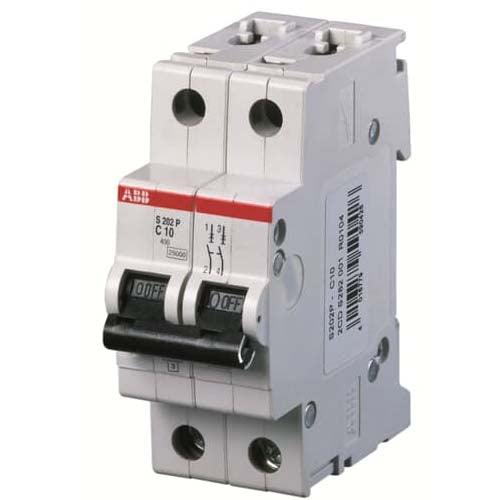

ABB Miniature Circuit Breaker S202-C20 2P 400V 20A in Pakistan - 20A

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. Specification: Type of product: Miniature Circuit Breaker Number of Poles: 2 Current Rating: 20A Tripping Characteristics: Type C Rated AC Voltage: 400V Breaking Capacity at Maximum Voltage Rating: 6 kA Range : System M Pro Length: 88mm Package includes: 1 x ABB Miniature Circuit Breaker S202-C20 2P 400V 20A
