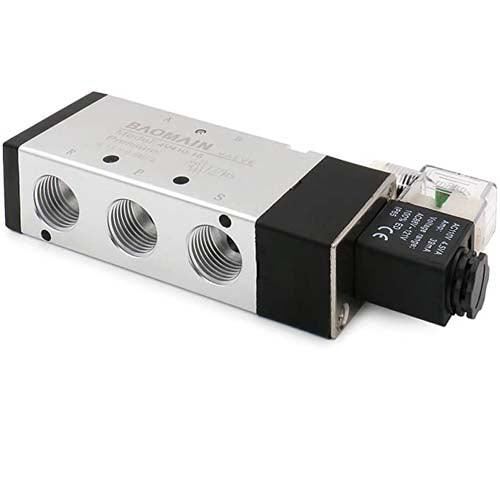

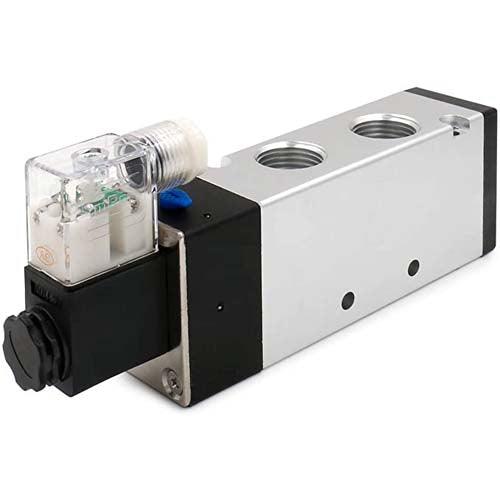

4V410-15 Pneumatic Solenoid Air Valve in Pakistan

4V410-15 Pneumatic Solenoid Air Valve in Pakistan BR3030 Description Standard or Nonstandard: Standard Structure: Pilot Pressure: Medium Pressure Power: Solenoid Material: Brass Temperature of Media: Medium Temperature Media: Water Port Size: M5 M6 1/8" 3/16" 1/4" 5/16" 3/8" 1/2" 3/4" 1" 2" Place of Origin: Zhejiang, China (Mainland) Model Number: 4V pneumatic: valves Delivery Delivery Detail: 2-3 days Specifications Solenoid Valve 1.Acting Type:direct acting 2.Coil Type:DIN type/Flyling lead 3.Protective Class:IP65(DIN40050) 4.100% test 4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 types have single solenoid type and double solenoid type, Single solenoid valves is repositioned by the spring, and the double solenoid valve is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position. Specifications  of 4v Series Solenoid Valve (3 Position 5 port center pressure) Model 4V130P-M5 4V130P-06 4V230P-06 4V230P-08 4V330P-08 4V330P-10 4V430P-15 Working Medium Clean Air (40 Micrometer Filteration) Ways 3 Position 5 Port Acting Type Direct Acting Joint Size Import=M5 Export=M5 Exhaust=M5 Import=1/8 Export=1/8 Exhaust=1/8 Import=1/4 Export=1/4 Exhaust=1/8 Import=1/4 Export=1/4 Exhaust=1/4 Import=3/8 Export=3/8 Exhaust=1/4 Import=1/2 Export=1/2 Exhaust=1/2 Sectional Area 5mm2(CV=0.28) 9mm2(CV=0.5) 12mm2(CV=0.67) 12mm2(CV=0.67) 18mm2(CV=1.0) 18mm2(CV=1.0) 30mm2(CV=1.67) Working Pressure 0.15~0.9Mpa Guarantee Pressure 1.2Mpa Working Temperature -5~60°C Voltage Range -15%~10% Heat Resistant Grade B Protective Class IP65(DIN40050) Coil Type DIN Type,Flying Leads Max Acting Frequency 3 Times/s 3 Times/s 3 Time
