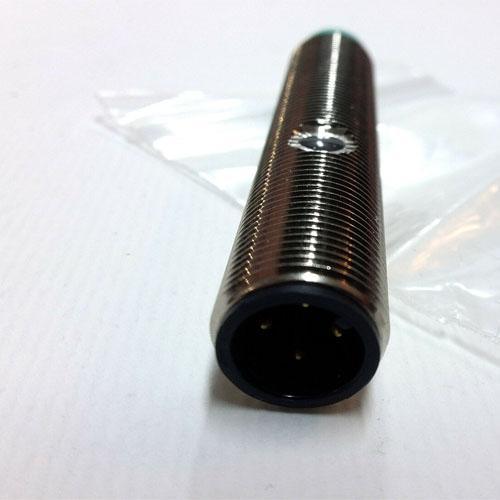

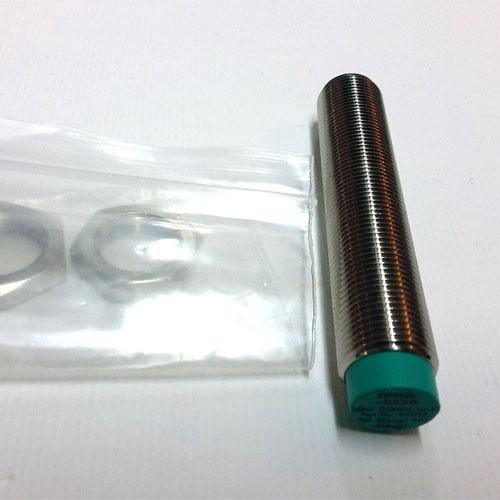

4mm Sn Inductive sensor NBN4-12GM50-E2-V1

4mm Sn Inductive sensor NBN4-12GM50-E2-V1 BR2266 Features: Switching function Normally open (NO) Output type PNP Rated operating distance 4 mm Installation non-flush Output polarity DC Assured operating distance 0 ... 3.24 mm Hysteresis type. 5% Nominal ratings Operating voltage 10 ... 30 V Switching frequency 0 ... 1200 Hz Reverse polarity protection Reverse polarity protected Short-circuit protection pulsing Voltage drop? 3 V Repeat accuracy ? 0.01 mm Operating current 0 ... 200 mA Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C No-load supply current? 17 mA Switching state indicator Multihole-LED, yellow Functional safety-related parameters MTTFd 990 a Mechanical specifications: Connection type Connector M12 x 1 , 4-pin Housing material brass, nickel-plated Sensing face PBT Housing diameter 12 mm Degree of protection IP67 Specification: Brand Name : DIY Supplies : Electrical Model : NBN4-12Gm50-E0/E2-V1 Types of electronic and electrical produ: Proximity switch/sensor Colour : Other /other Packages Include: 1 x 4mm Sn Inductive sensor
