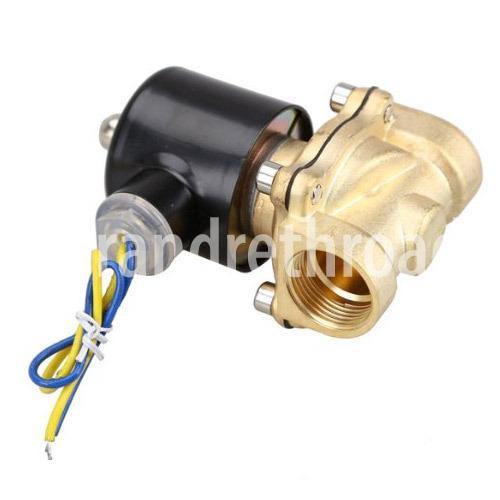

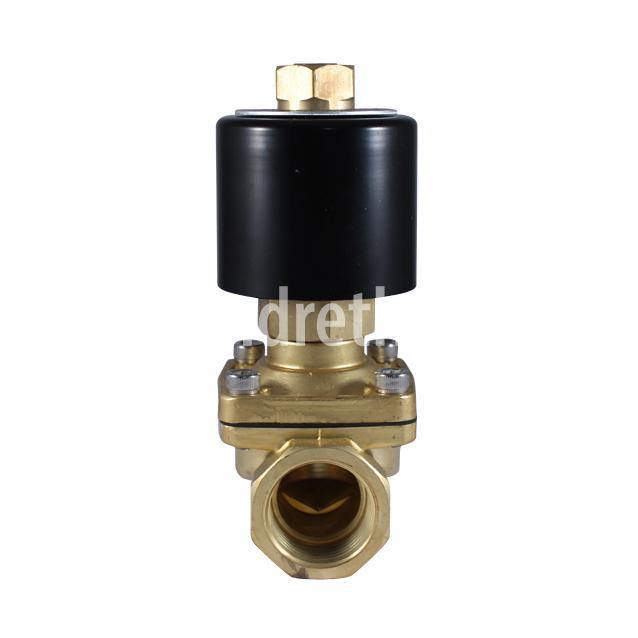

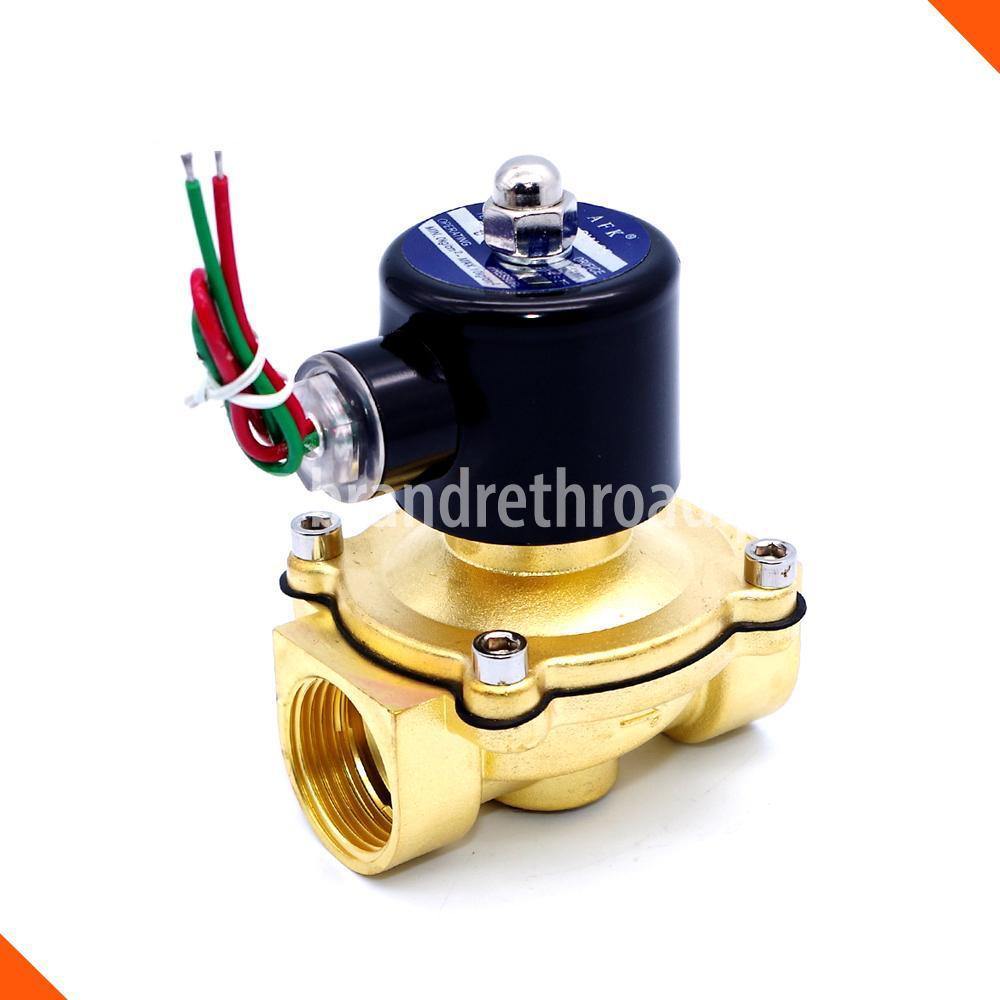

3/4" UNI-D Solenoid Valve for water and oil, NO
Rs 9,500
✓ In Stock (10)✅ Genuine product guaranteed
🚚 Cash on Delivery across Pakistan
🔧 Expert technical support
📦 Secure packaging
Product Description
3/4" UNI-D Solenoid Valve for water and oil,
Specifications:
Model
2L170-10 2L170-15 2L170-20 2L200-25 2L300-40 2L500-50
Fluid Air, Water, Steam
Operation Guide type
Type Normal open type
Aperture (mm) 17 22 30 50
Cv value 4.8 12 20 48
Port size G3/8'' G1/2'' G3/4'' G1'' G1 1/2'' G2''
Operation fl uid viscosity 20 CST Below
Operating pressure 0.1 ~ 1.5MPa
Max. Proof pressure 2.25MPa
Operating temperature -5 ~ 180C
EVoltage range ±10%
Material of body Brass
Material of oil seal PTFE
Packages Include:
1 x 3/4" UNI-D Solenoid Valve for water and oil, NO
