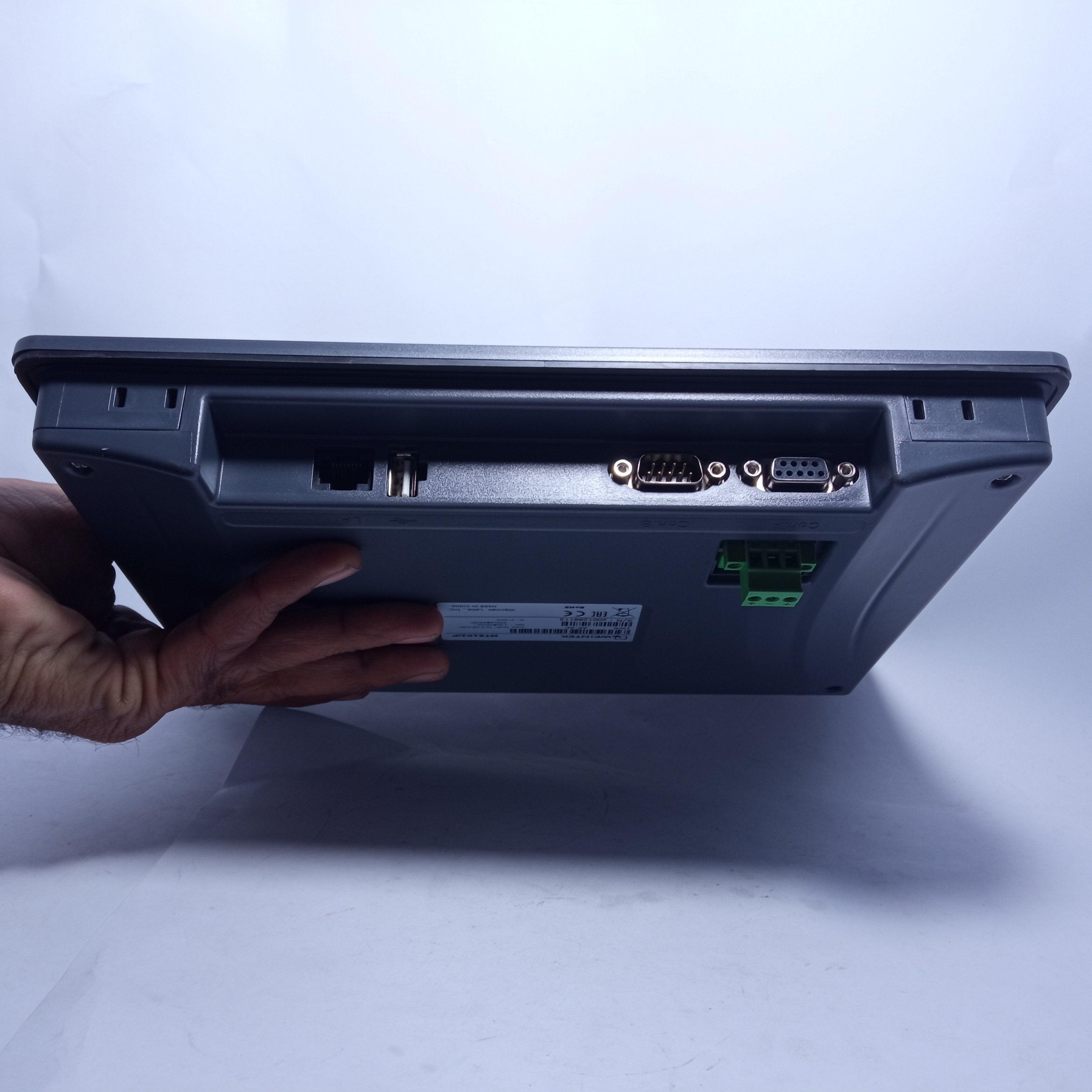

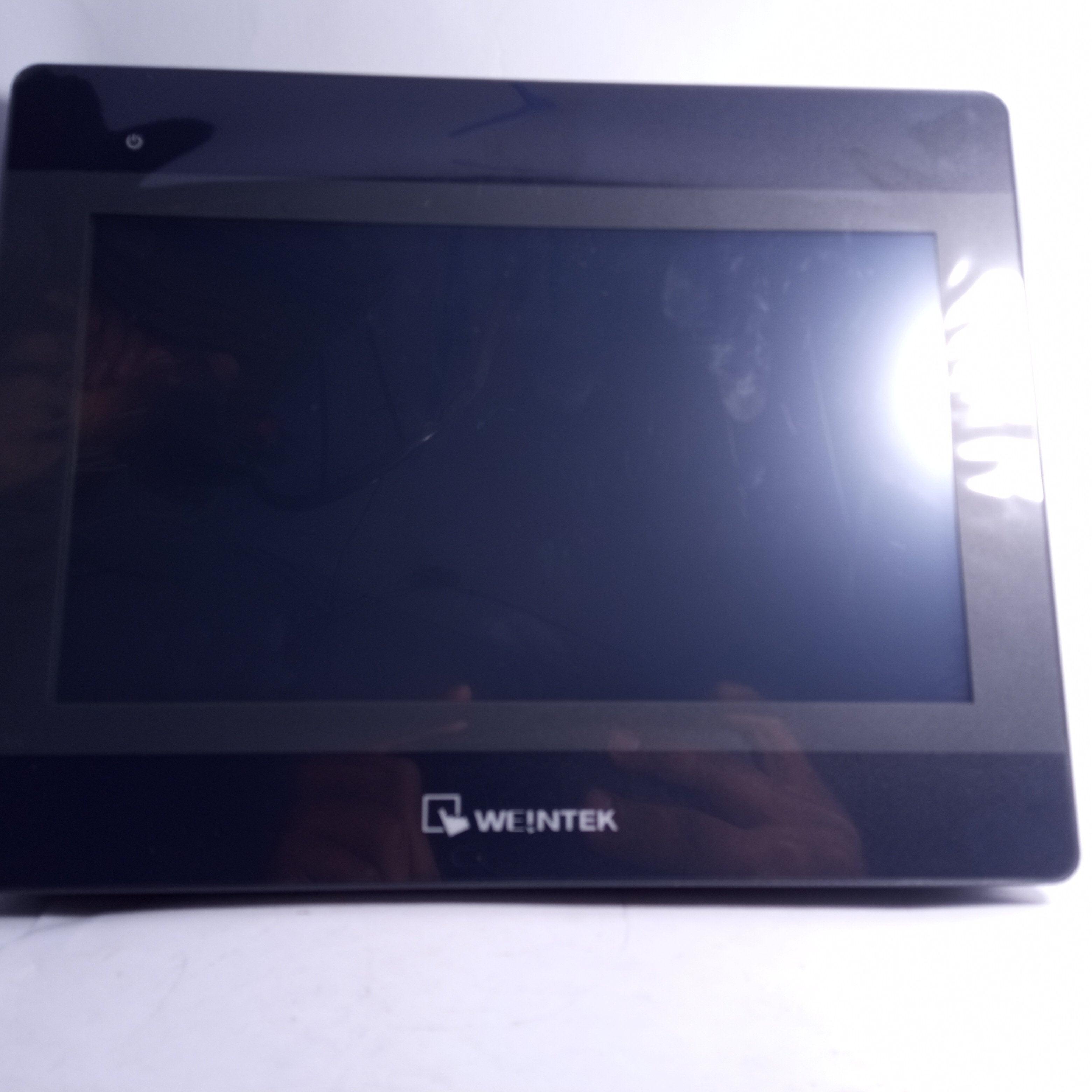

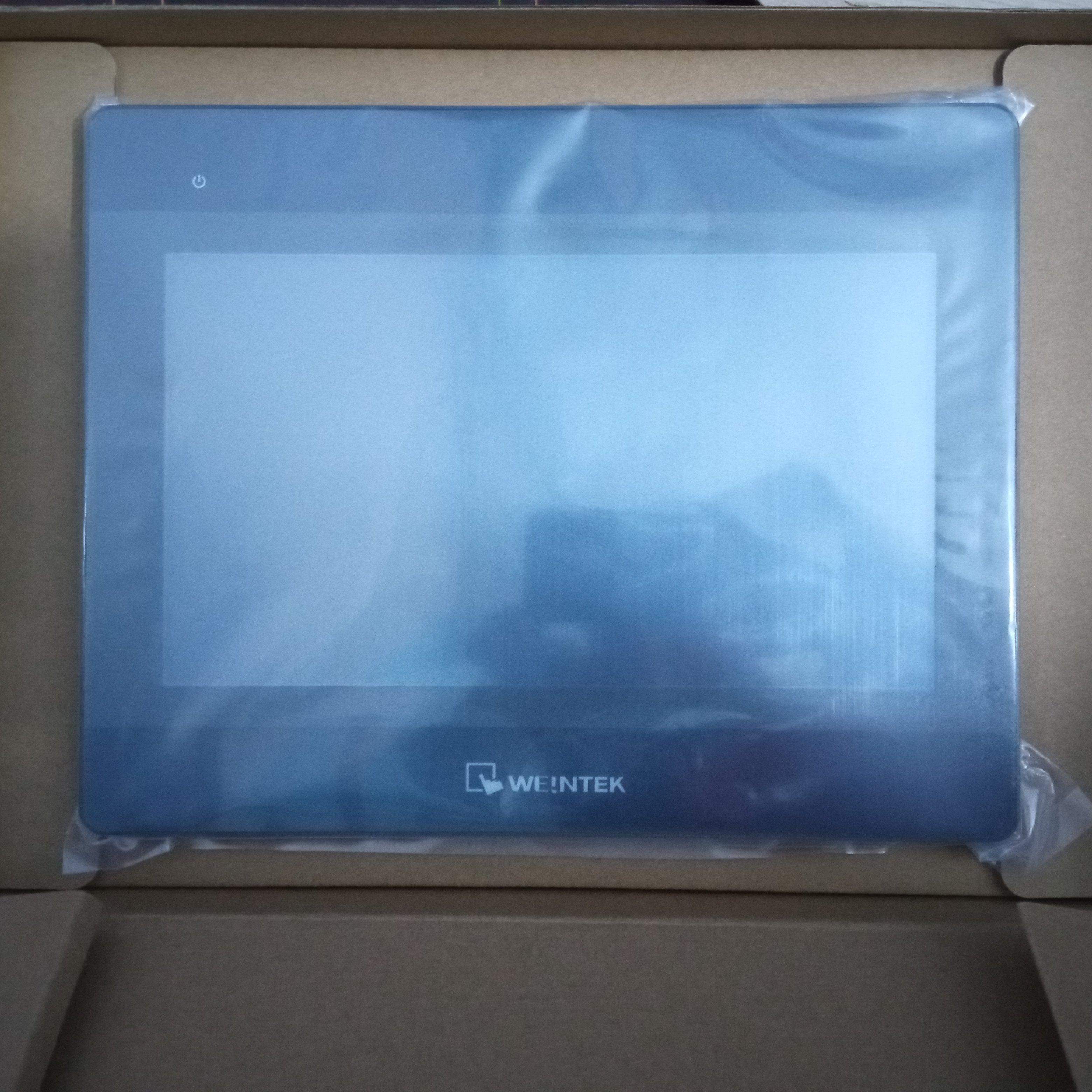

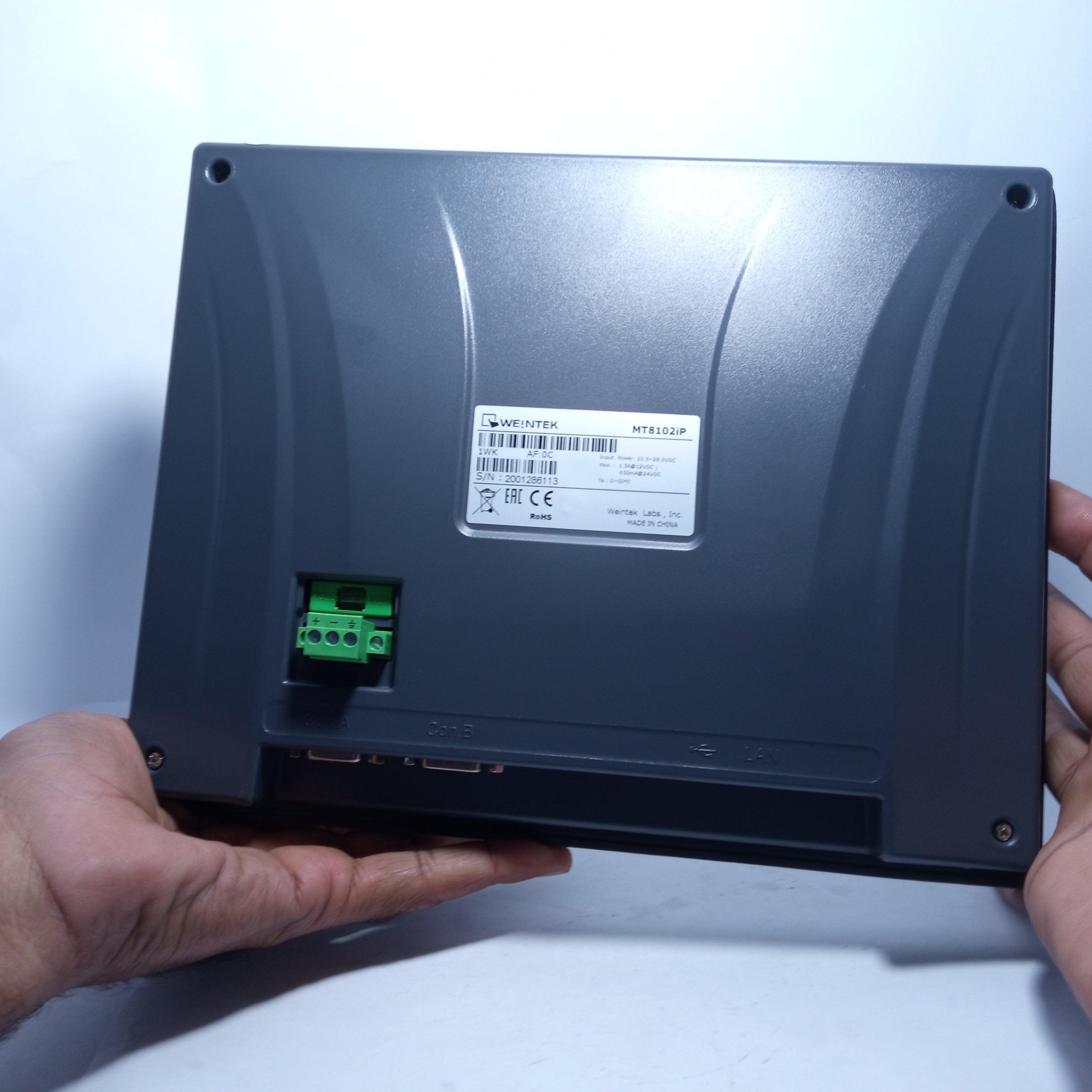

10" Wientek hmi mt8102ip

The 10 Inch Weintek HMI MT8102iP is a high-performance industrial Human Machine Interface (HMI) designed for reliable monitoring and control of automation systems. Featuring a 10-inch color touch screen , this HMI provides a clear, user-friendly interface for interacting with PLCs, inverters, and industrial machines. Manufactured by Weintek , a globally trusted brand in industrial HMI solutions, the MT8102iP offers stable performance, fast response, and excellent compatibility with multiple PLC brands. Its rugged design makes it suitable for harsh industrial environments, ensuring long service life and dependable operation. This HMI panel is widely used in factory automation, production lines, packaging machines, CNC systems, conveyors, and process control applications . The intuitive touch interface improves operational efficiency by allowing operators to monitor data, control processes, and troubleshoot systems easily. Easy to install and program, the Weintek MT8102iP 10” HMI is an ideal choice for industrial automation projects across Pakistan. Features: Large 10-inch color touch screen display Fast and responsive touch operation Compatible with multiple PLC brands Industrial-grade durable design Easy integration in automation systems Specification: Display                                           Display 10.1” TFT Resolution                                     1024 x 600 Brightness                                     (cd/m2) 350 Contrast Ratio                              500:1 Backlight Type                              LED Backlight Life Time                     >20,000 hrs. Colors                                               16.7M LCD Viewing Angle                      (T/B/L/R) 60/60/70/70 Touch Panel Type                        4-wire Resistive Type Accuracy Active Area Length   (X)±2%, Width(Y)±2% Memory Flash                              128 MB RAM 128 MB Processor ARM RISC                      528MHz I/O Port SD Card Slot                                      N/A USB Host                                            USB 2.0 x 1 USB Client                                        N/A Ethernet                                        10/100 Base-T x 1 COM Port                                      Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232 4W, COM3 RS-232 2W* RS-485 Dual Isolation N/A CAN Bus                                        N/A HDMI                                              N/A Audio Output                                N/A Video Input                                   N/A RTC                                                 Built-in Power Input Power 10.5 ~ 28VDC Power Isolation Built-in Power Consumption 1.3A@12VDC ; 650mA@24VDC Voltage Resistance 500VAC (1 min.) Isolation Resistance Exceed 50M? at 500VDC Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes) PCB Coating N/A  Enclosure Plastic  Dimensions WxHxD 271 x 213 x 36.4 mm  Panel Cutout 260 x 202 mm  Weight Approx. 1 kg  Mount Panel mount  Environment  Protection Structure NEMA4 / IP65 Compliant Front Panel  Storage Temperature -20° ~ 60°C (-4° ~ 140°F)  Operating Temperature 0° ~ 50°C (32° ~ 122°F)  Relative Humidity 10% ~ 90% (non-condensing)  Certificate CE CE marked  Software EasyBuilder Pro  *Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.  HMI with 10.1" TFT LCD Display Uses: PLC-based automation systems Industrial machine control panels Production and assembly lines Packaging and conveyor systems Process monitoring and control Package Includes 1 x 10" Weintek HMI MT8102iP
